Osnovne komponente / Kontroleri
DS-30201-4
Tehničke specifikacije
Šifra artikla: 053406
Proizvođač: Digitus
Model (ITM): DS-30201-4
Naziv: PCIe Card, 3x Firewire Port (2x External + 1x Internal Port), VIA6315 chipset
Barkod: 4016032390978
Slike artikala
0/0
Opis

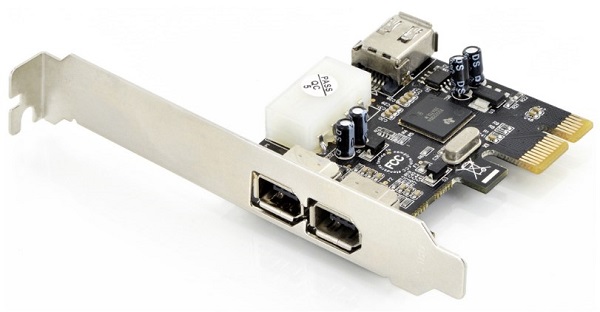

Digitus PCI Express Card, Firewire 1394a (2+1 ports)

With this IEEE 1394a / Firewire express card you can easily extend your PC system by three additional IEEE 1394 ports. It is equipped with two external and one internal port as well with a Texas Instruments XIO2200 chipset. Thus, it supports data transfer rates of 100/200/400 Mbps and can be easily installed in any available PCI express slot with different lane width, thanks to the integrated Hot Swap- and Plug&Play-function.

Technical Details:
2x external and 1x internal IEEE 1394 ports, 6-pin
Chipset: TI XIO2200
Installs in any available PCI-Express slot with different lane width
Supports hot-swapping and Plug & play connections
Data transfer rate 100Mbps / 200Mbps / 400Mbps
Operating temperature: 0 °C ~ 70 °C
Operating humidity: 25% - 65% RH (non-condensing)
Supports Windows 10, 8, 7, Vista and XP

Package Content:
PCI Express Card, Firewire 1394a (2+1 ports)
Driver CD
Manual
